Description

Mipro have a range of antenna systems designed to extend or improve range and coverage of their radio mic systems. Accessories include Ominidirectional, directional and circularly Polarised antennas as well as boosters, dividers and distribution amplifiers to cater for various installations.

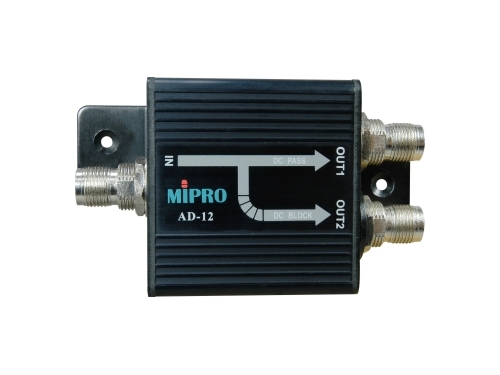

AD12
MIPRO Passive Antenna Divider/Combiner. The AD12 can be allow two antennae to be connected to one receiver antenna output (for distributed antenna applications), or can combine two receiver antenna outputs for connection to a single antenna.

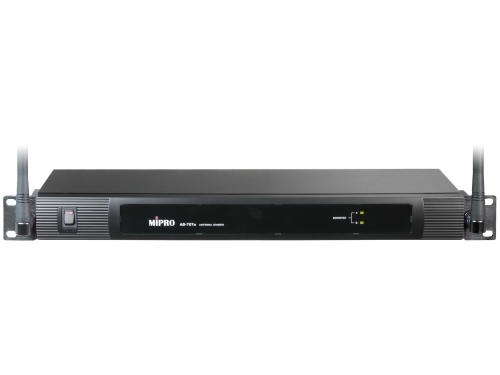

AD707a
MIPRO 4-Channel Antenna Divider with cables. Allows up to four UHF diversity receivers to operate from a single pair of antennas, greatly simplifying antenna installation, reducing clutter, and increasing range and efficiency. Wideband operation covering full legal spectrum. Includes 8 x cables with TNC’s

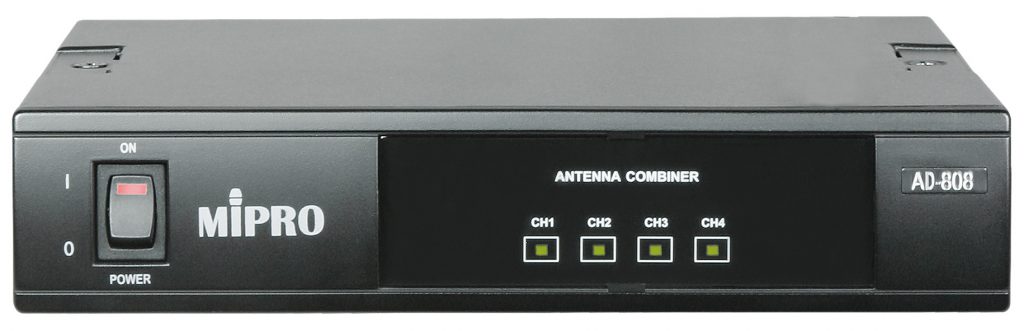

AD808
MIPRO AD-808 UHF 4-channel active antenna combiner is designed for combining the signals of 4 MIPRO MI-909T transmitters into 1 signal, and then transmits that signal from one antenna.

AD90s

MIPRO AD-90S is a UHF 4-channel power antenna splitter with a maximum output level of +26 dBm (0.4 W), assisting with one transmitter connecting to 4 transmitting antennas. Primarily operates with 1 MI-909T in-ear monitoring transmitter or 1 MT-92A wireless interlinking transmitters to send signals through 4 channels with reliable signal transmission and larger signal coverage in multiple directions. Note that AD-90S is not designed for receivers.

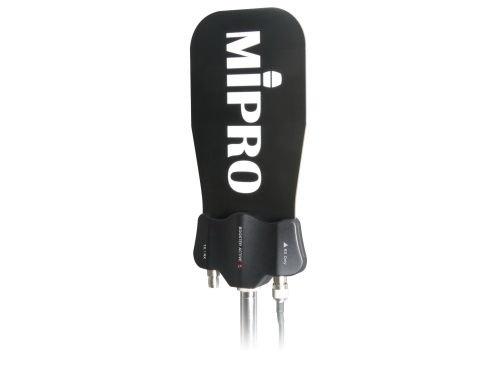

AT70Wa
MIPRO Omni-directional Transmit/Receive Antenna. TNC input connectors to connect with with a receiver or a transmitter. RX connector has a 0-12dB adjustable booster. Can either be mounted on a mic stand or wall-mounted with MS-90 bracket. Priced per unit.

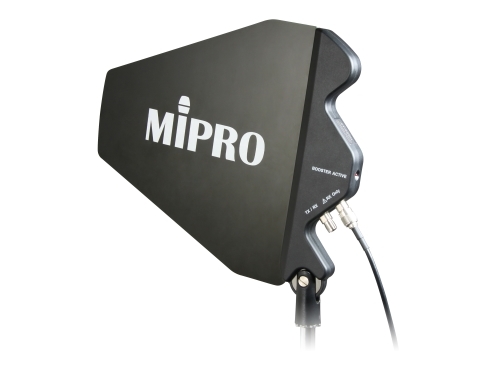

AT90Wa
MIPRO Directional Transmit/Receive Antenna. Bi-functional log antenna with 130H x 75V degree coverage. TNC input connectors to connect with with a receiver or a transmitter. RX connector has a 0-12dB adjustable booster. Can either be mounted on a mic stand or wall-mounted with MS-90 bracket. Priced per unit.

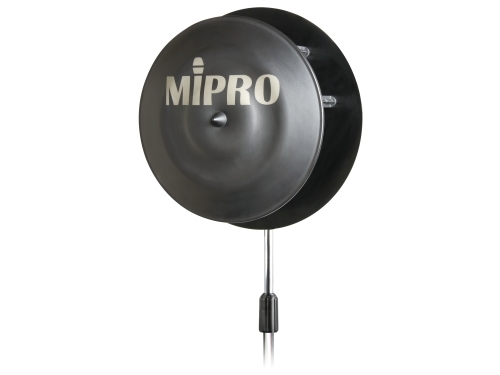

AT100a
MIPRO Circularly Polarised Antenna. The AT-100a circularly polarised antenna can effectively reduce the polarisation loss of the antenna to improve signal strength. TNC input connectors to connect with with a receiver or a transmitter. RX connector has a 0-12dB adjustable booster. Waterproof and weather resistant for outdoor installations. Can either be mounted on a mic stand or wall-mounted with MS-90 bracket. Priced per unit.

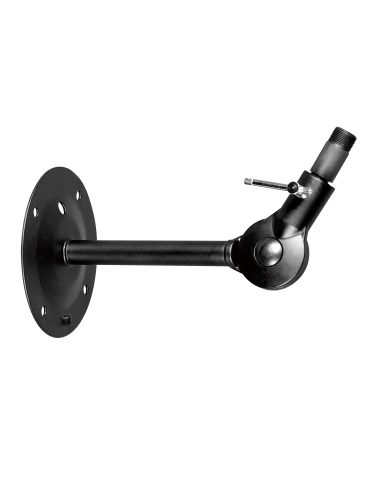

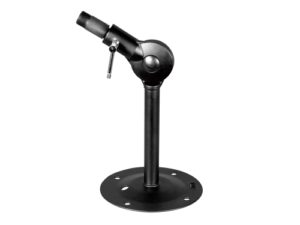

MS90
MIPRO Wall Mounting bracket for AT70Wa, AT90Wa and AT100a. Priced per unit

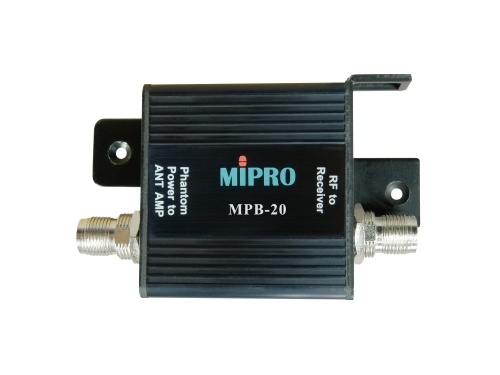

MPB20
MIPRO UHF Antenna Booster. Provides 13dB of gain to compensate for signal loss due to long antenna cable runs. TNC connectors. Can be powered externally or direct from MIPRO receivers.

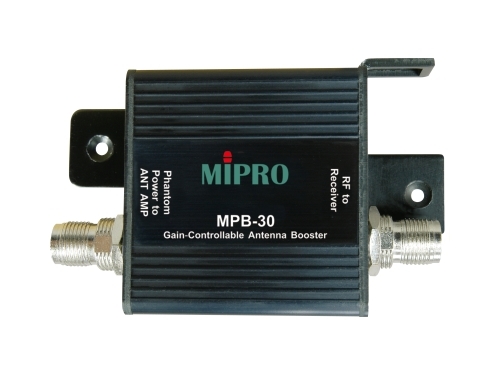

MPB30
MIPRO UHF Gain Controllable Antenna Booster. Works with the AD-708 antenna divider to detect and automatically compensate for the signal loss of cables by controlling the built-in variable 0 -14 dB. TNC connectors.

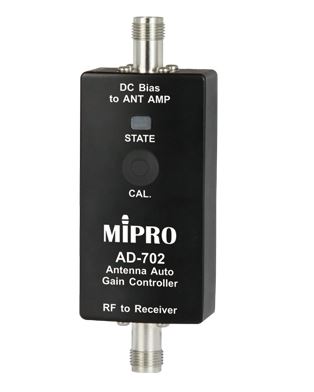

AD702
MIPRO Antenna Auto Gain Controller. Automatically detects the signal loss between the built-in booster of the antenna and AD702 itself. Can control and compensate for the signal loss of antenna cables precisely and automatically. Includes a bright LED indicator to identify antenna cable signal loss as well as the booster compensation status.

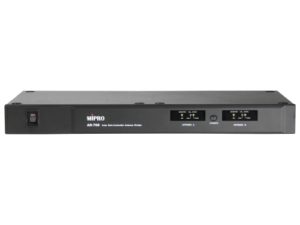

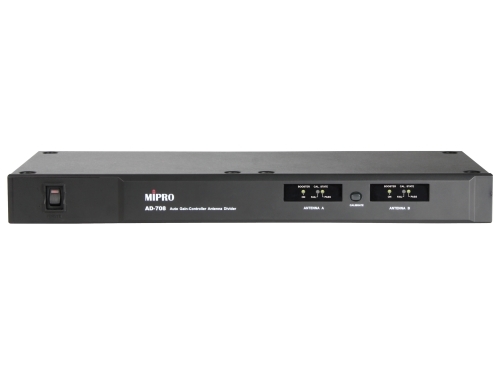

AD708
MIPRO UHF Gain Controllable Antenna Booster. The AD-708 is designed to work with an MPB-30 gain-controllable antenna booster to detect the signal loss to control and compensate for the signal loss of antenna cables precisely and automatically in order to avoid the inter-modulation caused by the higher gain supply from the booster.

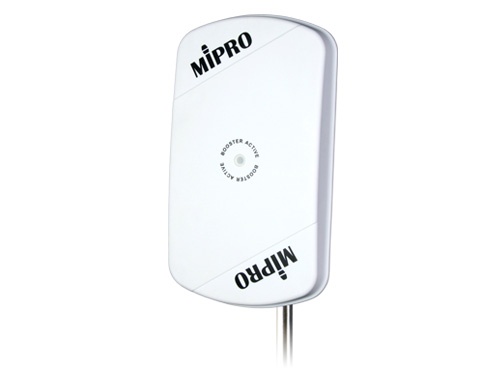

AT-24
MIPRO 2.4 GHz Quasi-Circularly-Polarized Receiving Antenna. Built-in 12 dB booster. Waterproof and weather resistant and ideal for both outdoor and indoor applications. TNC female connector. Up to 10m distance on RG58 from receiver. Can be extended with MPB-24 booster. AT-24 be stand mounted on a mic stand, or wall mounted with MS-90 bracket.

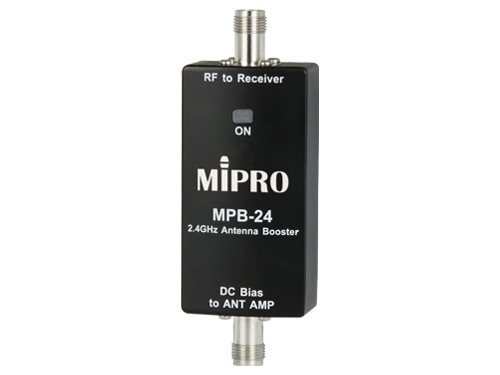

MPB-24
MIPRO 2.4GHz antenna booster with 20 dB gain to compensate for signal loss due to long antenna cables. Position between receiver and AT-24 for a total RG58 cable distance of 40m (max 20m between receiver and MPB-24, and max 20m between MPB-24 and AT-24). TNC connectors.
