Description

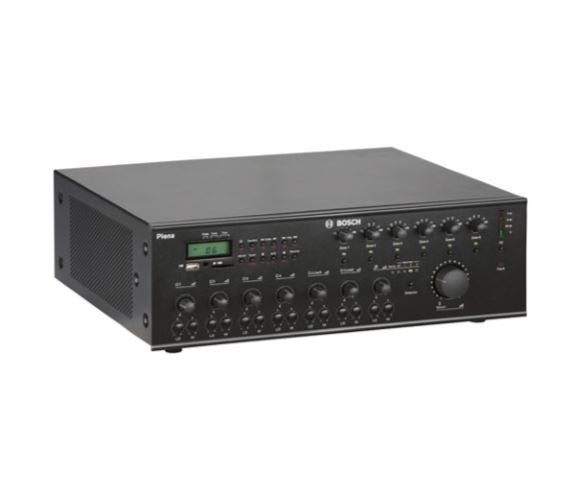

PLN-6AIO240 Bosch six-zone 240W background music and paging system. Integrated USB/SD music player along with AM/FM tuner with presets. 6 Mic Inputs (last two are mic/line) plus three music inputs and internal music player (music selectable via front panel or supplied IR remote). Each input includes bass and treble controls. Each of the six zone output zones includes a front panel level control. The All-In-One unit features an internal 240W amplifier. When paging to a zone, music stops everywhere. A second power amplifier can be connected to operate a music amplifier, so when paging occurs, those zones being addressed are switched to the paging amplifier whist the music amplifier allows background music to remain uninterrupted in the zones not being paged. Optional All-Call and Six Zone Paging Mics, and optional industrial grade wall panel which provides remote XLR and 3.5mm line input, as well as remote music selection and master volume.

Optional Accessories include:

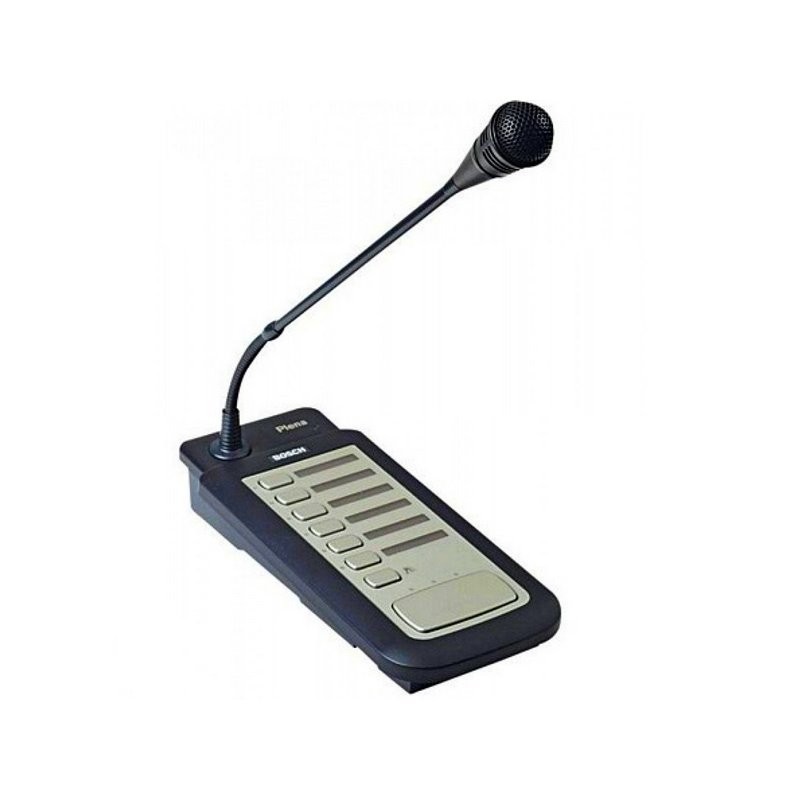

PLN-6CS Six-Zone Call Station for All-In-One System. Simple selection of up to six zones and All-Call for paging announcements. Up to six call stations can be connected through a ‘loop-thru’ arrangement over CAT5 cable. Max distance from the All-In-One unit to the last call station can be up to 600m. Call Station includes a limiter, configurable sensitivity and a pre-announce chime.

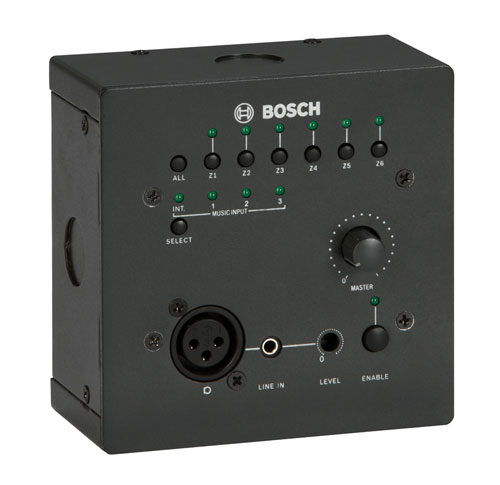

PLN-4S6Z Remote Control Wall Panel and Input Plate. Industrial grade remote control and input panel for All-In-One system. Designed to take-over operational control of the All-In-One unit for control away from the rack. The Enable button toggles between main unit control or wall panel control. The wall panel is capable of selecting a music source, selecting the zones that receive the music, and can also control the master volume. It also provides a XLR mic and 3.5mm line input with level control. Connects to All-In-One unit via CAT5 cable.
