Description

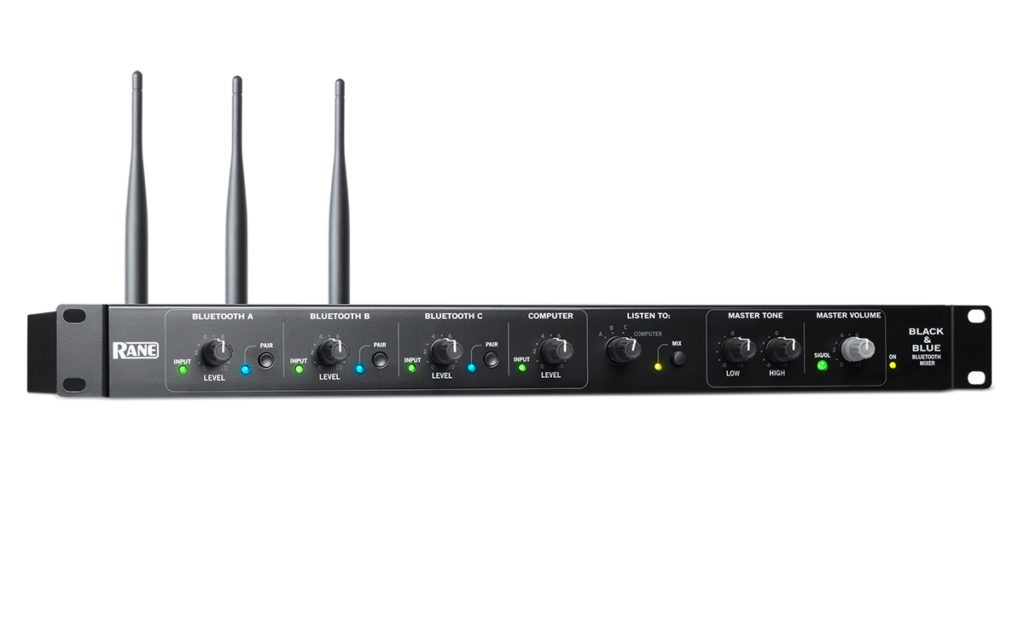

The RANE Black & Blue is a simple, mono input-selector/mixer/amplifier with (3) discrete channels of Bluetooth®, 3.5mm line input, and USB computer link for playback or recording. Inputs can be selected for monitoring individually, or all inputs mixed at once.
Application examples are:
Meeting Rooms (Bluetooth® A head-worn mic, computer program through USB, XLR line out to powered speakers). Unit in mixer mode for mixing sources.
Coffee Bar (Bluetooth® A mobile device, Bluetooth® B is TV audio, Bluetooth® C is barista head-worn mic for calling orders…amplifier out to full-range speakers and XLR out to subwoofer. Unit in mixer mode for mixing sources.
Trade Show (Bluetooth® A is tablet streaming music, Bluetooth® B is presenter head-worn mic…XLR out to powered speaker, and USB out streams to laptop computer to record the presentation. Unit in mixer mode for mixing sources.
Features
- 3 discrete Bluetooth registered inputs with individual volume controls and antennas. Master volume control with 3-colour LED (green, yellow, red). Power LED (yellow)
- Pairing buttons and status LEDs (blue) for each Bluetooth input, 3.5mm line input (disconnects USB input audio). Pre-fader signal LEDs (green) on each channel. XLR line output (+20 dBu Balanced)
- Class compliant USB Audio for Record and Playback. Source selector for solo monitoring or Mix All Mode
- Shelving Bass and Treble Mix EQ
- 20W mono Class-D amplifier (4 Ohm and 100v)
